# Multiple linear regression
## Research methods
### Jüri Lillemets
### 2021-12-07

---

# How to model a relationship with multiple predictors?

---

# Least squares with multiple predictors

---

## What does a multiple linear regression model look like?

A model with two predictors can be expressed as follows:

`$$y = \beta_0 + \beta_{1} x_1  + \beta_{2} x_2 + \varepsilon$$`

where

- `$\beta_1$` is a coefficient of `$x_1$` and
- `$\beta_2$` is a coefficient of `$x_2$`.

---

Let's illustrate it with data on "Determinants of Economic Growth".

.small[
- `oil` factor. Is the country an oil-producing country?
- `inter` factor. Does the country have better quality data?
- `oecd` factor. Is the country a member of the OECD?
- `gdp60` Per capita GDP in 1960.
- `gdp85` Per capita GDP in 1985.
- `gdpgrowth` Average growth rate of per capita GDP from 1960 to 1985 (in percent).
- `popgrowth` Average growth rate of working-age population 1960 to 1985 (in percent).
- `invest` Average ratio of investment (including Government Investment) to GDP from 1960 to 1985 (in percent).
- `school` Average fraction of working-age population enrolled in secondary school from 1960 to 1985 (in percent).
- `literacy60` Fraction of the population over 15 years old that is able to read and write in 1960 (in percent).
]

Suppose that we wish to know how do population growth and investments influence economic growth.

---

What does the data look like? Here are first rows:

|   |oil   |inter |oecd  | gdp60| gdp85| gdpgrowth| popgrowth| invest| school| literacy60|
|:--|:-----|:-----|:-----|-----:|-----:|---------:|---------:|------:|------:|----------:|
|1  |FALSE |TRUE  |FALSE |  2485|  4371|       4.8|       2.6|   24.1|    4.5|         10|
|2  |FALSE |FALSE |FALSE |  1588|  1171|       0.8|       2.1|    5.8|    1.8|          5|
|3  |FALSE |FALSE |FALSE |  1116|  1071|       2.2|       2.4|   10.8|    1.8|          5|
|5  |FALSE |FALSE |FALSE |   529|   857|       2.9|       0.9|   12.7|    0.4|          2|
|6  |FALSE |FALSE |FALSE |   755|   663|       1.2|       1.7|    5.1|    0.4|         14|
|7  |FALSE |TRUE  |FALSE |   889|  2190|       5.7|       2.1|   12.8|    3.4|         19|
|8  |FALSE |FALSE |FALSE |   838|   789|       1.5|       1.7|   10.5|    1.4|          7|
|9  |FALSE |FALSE |FALSE |   908|   462|      -0.9|       1.9|    6.9|    0.4|          6|
|10 |FALSE |FALSE |FALSE |  1009|  2624|       6.2|       2.4|   28.8|    3.8|         16|
|11 |FALSE |FALSE |FALSE |   907|  2160|       6.0|       2.5|   16.3|    7.0|         26|
|12 |FALSE |TRUE  |FALSE |   533|   608|       2.8|       2.3|    5.4|    1.1|         15|
|15 |FALSE |FALSE |FALSE |  1009|   727|       1.0|       2.3|    9.1|    4.7|         27|
|17 |FALSE |TRUE  |FALSE |  1386|  1704|       5.1|       4.3|   12.4|    2.3|          5|
|18 |FALSE |TRUE  |FALSE |   944|  1329|       4.8|       3.4|   17.4|    2.4|         20|
|20 |FALSE |FALSE |FALSE |   863|   944|       3.3|       3.0|   21.5|    2.5|          9|
|21 |FALSE |TRUE  |FALSE |  1194|   975|       1.4|       2.2|    7.1|    2.6|         50|
|22 |FALSE |TRUE  |FALSE |   455|   823|       4.8|       2.4|   13.2|    0.6|         25|
|23 |FALSE |TRUE  |FALSE |   737|   710|       2.1|       2.2|    7.3|    1.0|          3|
|24 |FALSE |FALSE |FALSE |   777|  1038|       3.3|       2.2|   25.6|    1.0|          5|
|26 |FALSE |TRUE  |FALSE |  1030|  2348|       5.8|       2.5|    8.3|    3.6|         14|

]

---

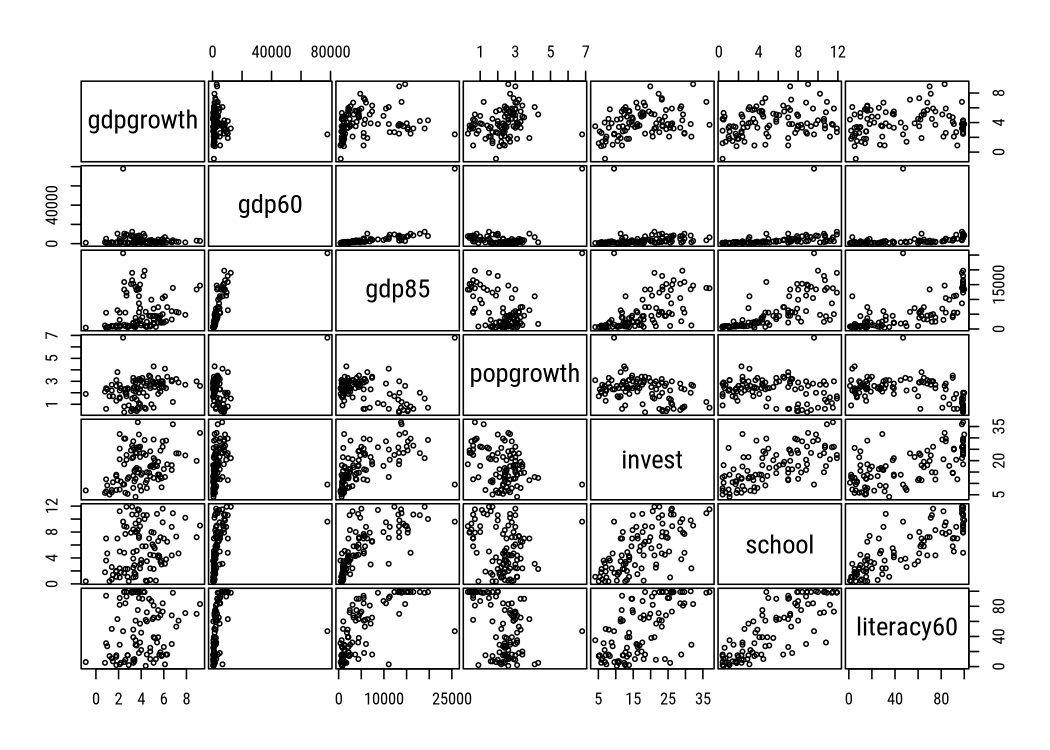

Start with examining (plotting) relationships.

![](08_multiple_files/figure-html/unnamed-chunk-3-1.png)

???
Can you see something wrong here? An outlier!

---

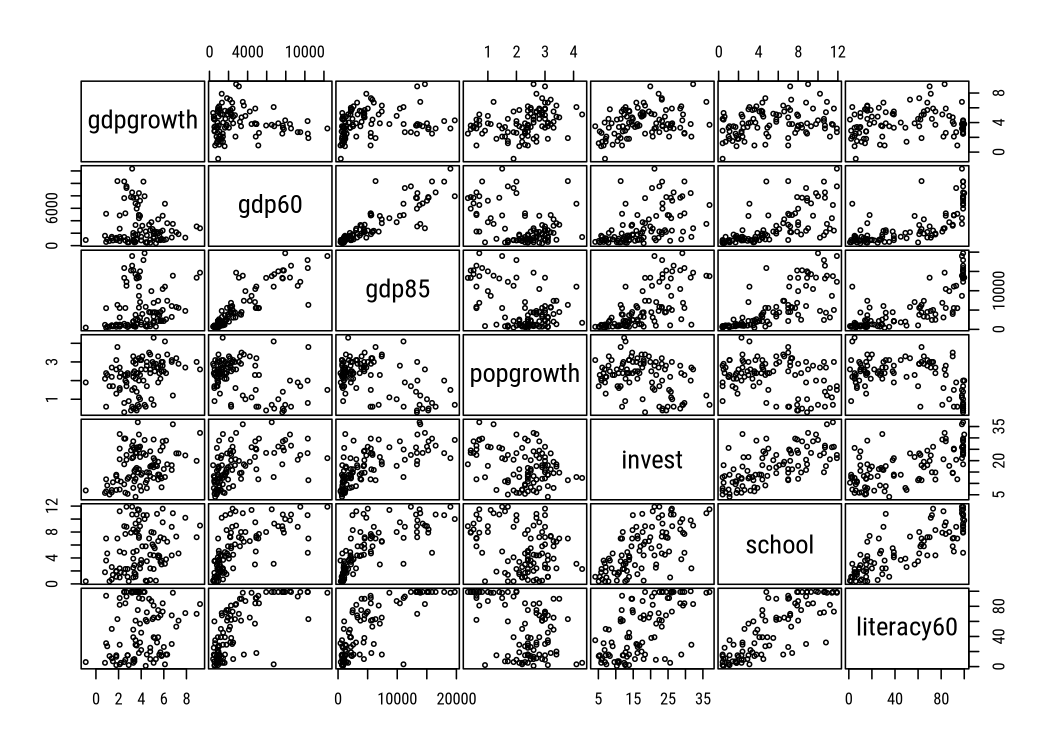

Suppose we have a reason to exclude the outlier.

![](08_multiple_files/figure-html/unnamed-chunk-4-1.png)

---

For three variables we need three dimensions.

<div id="htmlwidget-db7ea0aa20210941cbc4" style="width:100%;height:600px;" class="widgetframe html-widget"></div>
<script type="application/json" data-for="htmlwidget-db7ea0aa20210941cbc4">{"x":{"url":"08_multiple_files/figure-html//widgets/widget_unnamed-chunk-5.html","options":{"xdomain":"*","allowfullscreen":false,"lazyload":false}},"evals":[],"jsHooks":[]}</script>

---

Our model is thus

`$$gdpgrowth = \beta_0 + \beta_{1} popgrowth  + \beta_{2} invest + \varepsilon.$$`

```
##
## Call:
## lm(formula = gdpgrowth ~ popgrowth + invest, data = GrowthDJ)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -4.1645 -0.6789  0.0356  0.9037  3.8189
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept) -0.50729    0.62435  -0.813    0.419
## popgrowth    1.02477    0.17286   5.928 4.80e-08 ***
## invest       0.12634    0.02017   6.262 1.07e-08 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.464 on 96 degrees of freedom
## Multiple R-squared:  0.365,	Adjusted R-squared:  0.3517
## F-statistic: 27.59 on 2 and 96 DF,  p-value: 3.423e-10
```

---

With two predictors, the model is now a plane not a line.

<div id="htmlwidget-b51f383d4352a6ced9ae" style="width:100%;height:600px;" class="widgetframe html-widget"></div>
<script type="application/json" data-for="htmlwidget-b51f383d4352a6ced9ae">{"x":{"url":"08_multiple_files/figure-html//widgets/widget_unnamed-chunk-7.html","options":{"xdomain":"*","allowfullscreen":false,"lazyload":false}},"evals":[],"jsHooks":[]}</script>

??? %>%
More predictors, more dimensions. If one side is changed, the other also changes: coefficients are often interdependent.

---

# Why use multiple predictors?

---

### Variables may have mutual influence

```
##
## Call:
## lm(formula = gdpgrowth ~ school, data = GrowthDJ)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -4.1126 -1.2308 -0.2379  1.2776  4.6552
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   3.1507     0.3275   9.621 8.84e-16 ***
## school        0.1549     0.0511   3.032  0.00312 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.746 on 97 degrees of freedom
## Multiple R-squared:  0.08656,	Adjusted R-squared:  0.07714
## F-statistic: 9.192 on 1 and 97 DF,  p-value: 0.003118
```
]
.pull-right[

```
##
## Call:
## lm(formula = gdpgrowth ~ school + invest, data = GrowthDJ)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -3.8893 -1.3835 -0.2008  1.1318  4.6520
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  2.48804    0.42280   5.885 5.83e-08 ***
## school       0.05201    0.06584   0.790   0.4315
## invest       0.06962    0.02906   2.396   0.0185 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.705 on 96 degrees of freedom
## Multiple R-squared:  0.1381,	Adjusted R-squared:  0.1201
## F-statistic:  7.69 on 2 and 96 DF,  p-value: 0.0007988
```
]
]

Studies often include *control variables*.

???
Common control variables used: gender, education, SES

---

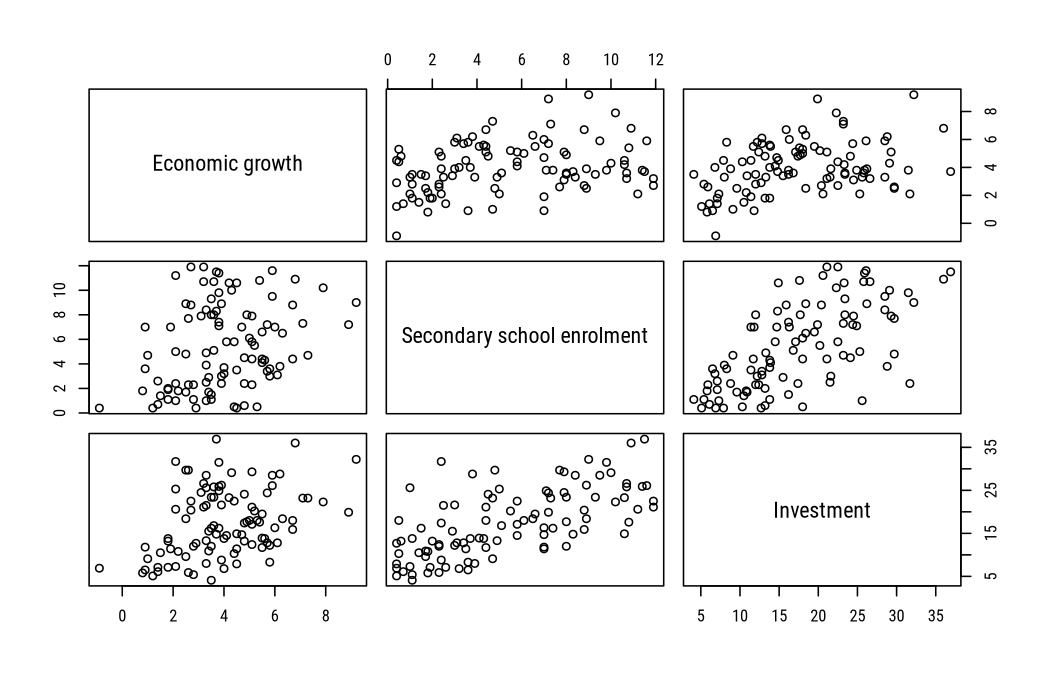

Why did secondary school enrolment alone have an effect but not when controlled for investment?

![](08_multiple_files/figure-html/unnamed-chunk-10-1.png)

???
Actually, investments have the effect.

---

An effect may only become apparent in combination with other predictors.

```
##
## Call:
## lm(formula = gdpgrowth ~ literacy60, data = GrowthDJ)
##
## Residuals:
## Min 1Q Median 3Q Max
## -4.5792 -1.1606 -0.2863 1.3109 4.9720
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 3.636443 0.314204 11.574 <2e-16 ***
## literacy60 0.007127 0.005181 1.376 0.172
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.809 on 97 degrees of freedom
## Multiple R-squared: 0.01913,	Adjusted R-squared: 0.009021
## F-statistic: 1.892 on 1 and 97 DF, p-value: 0.1721
```
]
.pull-right[

```
##
## Call:
## lm(formula = gdpgrowth ~ literacy60 + popgrowth, data = GrowthDJ)
##
## Residuals:
##    Min     1Q Median     3Q    Max
## -3.931 -1.011 -0.017  1.125  4.185
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept) 0.787982   0.645075   1.222 0.224875
## literacy60  0.019467   0.005291   3.680 0.000386 ***
## popgrowth   1.004444   0.204523   4.911 3.71e-06 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.626 on 96 degrees of freedom
## Multiple R-squared:  0.2161,	Adjusted R-squared:  0.1998
## F-statistic: 13.23 on 2 and 96 DF,  p-value: 8.412e-06
```
]
]

???
Coefficients change, too.

---

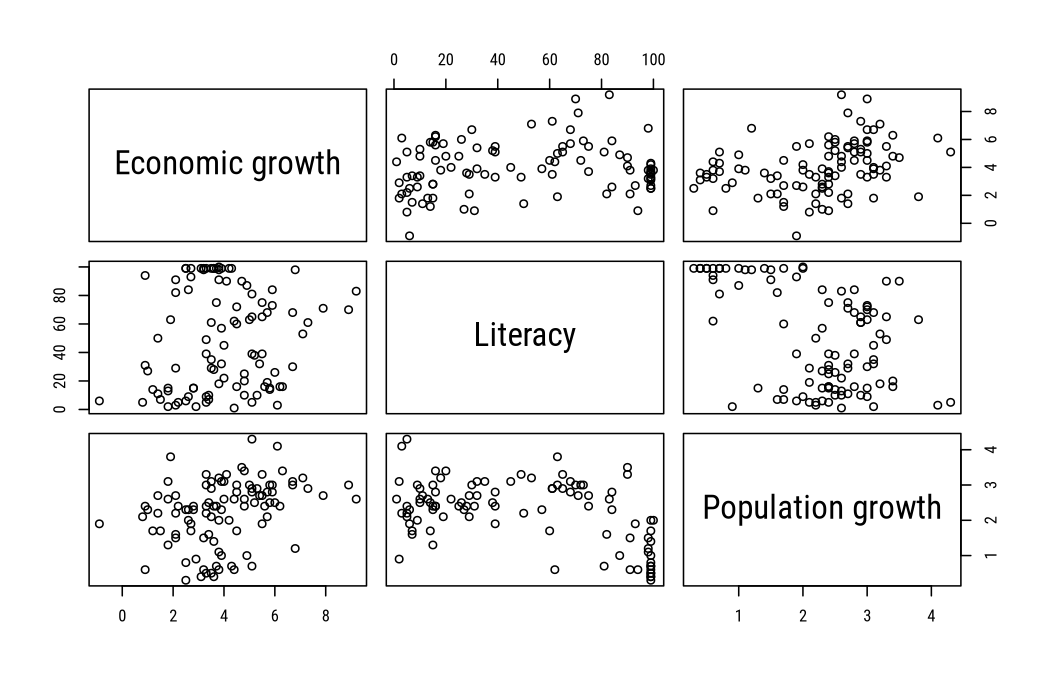

Why does literacy have no effect alone but does so with population growth?

![](08_multiple_files/figure-html/unnamed-chunk-13-1.png)

---

### Model fit is improved

```
##
## Call:
## lm(formula = gdpgrowth ~ popgrowth, data = GrowthDJ)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -4.6765 -1.1323  0.0118  1.0706  4.9706
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   2.5471     0.4602   5.535 2.65e-07 ***
## popgrowth     0.6470     0.1913   3.383  0.00104 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.728 on 97 degrees of freedom
## Multiple R-squared:  0.1055,	Adjusted R-squared:  0.09631
## F-statistic: 11.44 on 1 and 97 DF,  p-value: 0.001036
```
]
.pull-right[

```
##
## Call:
## lm(formula = gdpgrowth ~ ., data = GrowthDJ)
##
## Residuals:
## Min 1Q Median 3Q Max
## -2.57012 -0.56269 -0.07555 0.57741 2.09275
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) -1.339e-01 4.718e-01 -0.284 0.777195
## oilTRUE 1.035e+00 6.992e-01 1.480 0.142380
## interTRUE 1.029e+00 3.016e-01 3.411 0.000974 ***
## oecdTRUE -2.372e-01 4.774e-01 -0.497 0.620490
## gdp60 -7.818e-04 7.706e-05 -10.146 < 2e-16 ***
## gdp85 4.550e-04 5.456e-05 8.340 8.70e-13 ***
## popgrowth 1.056e+00 1.682e-01 6.277 1.23e-08 ***
## invest 4.192e-02 1.870e-02 2.243 0.027413 *
## school 7.766e-02 5.500e-02 1.412 0.161425
## literacy60 -3.822e-03 6.665e-03 -0.573 0.567837
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.9636 on 89 degrees of freedom
## Multiple R-squared: 0.7448,	Adjusted R-squared: 0.719
## F-statistic: 28.85 on 9 and 89 DF, p-value: < 2.2e-16
```
]
]

---

Why do multiple variables better explain variation?

![](08_multiple_files/figure-html/unnamed-chunk-16-1.png)

---

# Selection of predictors

---

We can start with adding all other variables as predictors.

---

## Statistical significance

We could remove statistically insignificant variables.

```
##
## Call:
## lm(formula = gdpgrowth ~ inter + gdp60 + gdp85 + popgrowth +
## invest, data = GrowthDJ)
##
## Residuals:
## Min 1Q Median 3Q Max
## -2.67920 -0.55299 -0.07245 0.68938 2.25172
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) -3.807e-01 4.312e-01 -0.883 0.379524
## interTRUE 8.854e-01 2.483e-01 3.565 0.000576 ***
## gdp60 -7.761e-04 7.470e-05 -10.389 < 2e-16 ***
## gdp85 4.738e-04 4.949e-05 9.575 1.62e-15 ***
## popgrowth 1.227e+00 1.246e-01 9.852 4.21e-16 ***
## invest 4.546e-02 1.789e-02 2.540 0.012732 *
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.971 on 93 degrees of freedom
## Multiple R-squared: 0.7292,	Adjusted R-squared: 0.7146
## F-statistic: 50.08 on 5 and 93 DF, p-value: < 2.2e-16
```
]
]

---

## F-test

This is a test of overall model fit.

F-statistic is calculated as follows:

`$$F = \frac{RSS_1 - RSS_1 / k}{RSS_2/(n-p-1)},$$`

where `$RSS_1$` is the residual sum of squares of reduced model and `$RSS_2$` the same for full model, `$k$` the difference in the number of parameters between two models, `$p$` the number of parameters and `$n$` the number of observations.

`$H_0: \beta_1 = \beta_2 = 0$`
`$H_1: \beta_1 \neq 0 \text{ or } \beta_2 \neq 0$`

---

Are oil producing and OECD membership together significant predictors of economic growth?

```
##
## Call:
## lm(formula = gdpgrowth ~ oil + oecd, data = GrowthDJ)
##
## Residuals:
## Min 1Q Median 3Q Max
## -4.8676 -1.2179 -0.0682 1.1324 5.2324
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 3.96757 0.21140 18.768 <2e-16 ***
## oilTRUE 1.43243 1.07099 1.337 0.184
## oecdTRUE -0.09939 0.44159 -0.225 0.822
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.819 on 96 degrees of freedom
## Multiple R-squared: 0.01954,	Adjusted R-squared: -0.0008835
## F-statistic: 0.9567 on 2 and 96 DF, p-value: 0.3878
```

> How would you interpret the p-value for F-statistic here?

---

## Akaike Information Criterion (AIC)

It's a measure of model goodness of fit.

For linear regression the information criterion is calculated as follows:

`$$AIC = n \times log(\frac{RSS}{n}) + 2 K,$$`

where `$n$` is the number of observations, `$RSS$` the residual sums of squares and `$K$` the number of predictors in a model.

**Lower** value indicates better fit.

---

Stepwise backwards selection according to AIC

```
## Start: AIC=2.12
## gdpgrowth ~ oil + inter + oecd + gdp60 + gdp85 + popgrowth +
## invest + school + literacy60
##
## Df Sum of Sq RSS AIC
## - oecd 1 0.229 82.875 0.399
## - literacy60 1 0.305 82.951 0.489
## <none> 82.645 2.124
## - school 1 1.851 84.497 2.318
## - oil 1 2.034 84.680 2.532
## - invest 1 4.670 87.315 5.566
## - inter 1 10.807 93.453 12.291
## - popgrowth 1 36.586 119.232 36.409
## - gdp85 1 64.583 147.229 57.290
## - gdp60 1 95.587 178.232 76.209
##
## Step: AIC=0.4
## gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth + invest +
## school + literacy60
##
## Df Sum of Sq RSS AIC
## - literacy60 1 0.276 83.151 -1.272
## <none> 82.875 0.399
## - school 1 1.794 84.669 0.519
## - oil 1 2.124 84.999 0.904
## - invest 1 4.537 87.412 3.676
## - inter 1 10.718 93.592 10.439
## - popgrowth 1 59.014 141.889 51.632
## - gdp85 1 69.725 152.600 58.837
## - gdp60 1 96.615 179.490 74.905
##
## Step: AIC=-1.27
## gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth + invest +
## school
##
## Df Sum of Sq RSS AIC
## - school 1 1.557 84.708 -1.435
## <none> 83.151 -1.272
## - oil 1 2.776 85.927 -0.021
## - invest 1 4.391 87.542 1.823
## - inter 1 10.820 93.971 8.839
## - popgrowth 1 63.770 146.921 53.083
## - gdp85 1 69.577 152.728 56.920
## - gdp60 1 104.954 188.105 77.546
##
## Step: AIC=-1.43
## gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth + invest
##
## Df Sum of Sq RSS AIC
## <none> 84.708 -1.435
## - oil 1 2.977 87.685 -0.015
## - invest 1 6.580 91.288 3.971
## - inter 1 14.935 99.643 12.641
## - popgrowth 1 65.310 150.019 53.148
## - gdp85 1 77.856 162.564 61.099
## - gdp60 1 103.411 188.119 75.554
```

```
##
## Call:
## lm(formula = gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth +
##     invest, data = GrowthDJ)
##
## Coefficients:
## (Intercept)      oilTRUE    interTRUE        gdp60        gdp85    popgrowth
##  -0.2703433    1.2002245    1.0822840   -0.0007836    0.0004574    1.1309585
##      invest
##   0.0473560
```
]

---

## Multicollinearity

It should not be possible to linearly predict any of the predictors from others predictors. Predictors should not be (highly) correlated.

Let's look at Pearson's correlation coefficients pairwise.

```
##              oil inter  oecd gdp60 gdp85 gdpgrowth popgrowth invest school literacy60
## oil         1.00 -0.30 -0.09  0.12  0.09      0.14      0.26  -0.04   0.01      -0.19
## inter      -0.30  1.00  0.31  0.34  0.39      0.32     -0.14   0.38   0.51       0.60
## oecd       -0.09  0.31  1.00  0.68  0.78     -0.04     -0.72   0.57   0.57       0.66
## gdp60       0.12  0.34  0.68  1.00  0.88     -0.09     -0.40   0.52   0.66       0.73
## gdp85       0.09  0.39  0.78  0.88  1.00      0.21     -0.50   0.68   0.74       0.78
## gdpgrowth   0.14  0.32 -0.04 -0.09  0.21      1.00      0.32   0.36   0.29       0.14
## popgrowth   0.26 -0.14 -0.72 -0.40 -0.50      0.32      1.00  -0.35  -0.31      -0.47
## invest     -0.04  0.38  0.57  0.52  0.68      0.36     -0.35   1.00   0.65       0.64
## school      0.01  0.51  0.57  0.66  0.74      0.29     -0.31   0.65   1.00       0.82
## literacy60 -0.19  0.60  0.66  0.73  0.78      0.14     -0.47   0.64   0.82       1.00
```

> Can you see anything that could result in collinearity?

???
Otherwise the coefficients are not be reliable.

---

### Variance inflation factor (VIF)

Multicollinearity can be detected with variance inflation factor by using `$R^2$` to estimate for each predictor how much of the variation in one predictor can be predicted from others.

`$$VIF_{k} = \frac{1}{1 - R^{2}_{k-1}},$$`

where `$R^{2}_{k-1}$` is `$R^{2}$` for a model that has predictor `$k$` as a response variable and all other predictors as predictor variables.

Remove predictors that have VIF >5.

---

What about our predictors that were selected using backwards selection with AIC?

```r
Model <- lm(gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth + invest,
 GrowthDJ)
car::vif(Model)
```

```
##       oil     inter     gdp60     gdp85 popgrowth    invest
##  1.407719  1.465608  4.790481  7.335392  1.598502  2.042422
```

> Would you exclude anything?

```r
Model <- update(Model, ~ oil + inter + gdp60 + popgrowth + invest)
car::vif(Model)
```

```
##       oil     inter     gdp60 popgrowth    invest
##  1.360429  1.427928  1.735117  1.422307  1.512411
```

---

What happens when we exclude influential predictors?

```
##
## Call:
## lm(formula = gdpgrowth ~ oil + inter + gdp60 + gdp85 + popgrowth +
## invest, data = GrowthDJ)
##
## Residuals:
## Min 1Q Median 3Q Max
## -2.71855 -0.53884 -0.03123 0.61961 2.39368
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) -2.703e-01 4.305e-01 -0.628 0.531552
## oilTRUE 1.200e+00 6.675e-01 1.798 0.075441 .
## interTRUE 1.082e+00 2.687e-01 4.027 0.000116 ***
## gdp60 -7.836e-04 7.394e-05 -10.598 < 2e-16 ***
## gdp85 4.574e-04 4.975e-05 9.195 1.13e-14 ***
## popgrowth 1.131e+00 1.343e-01 8.422 4.74e-13 ***
## invest 4.736e-02 1.771e-02 2.673 0.008888 **
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.9596 on 92 degrees of freedom
## Multiple R-squared: 0.7384,	Adjusted R-squared: 0.7213
## F-statistic: 43.28 on 6 and 92 DF, p-value: < 2.2e-16
```
]
.pull-right[

```
##
## Call:
## lm(formula = gdpgrowth ~ oil + inter + gdp60 + popgrowth + invest,
##     data = GrowthDJ)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -4.7848 -0.8059 -0.0678  0.9298  3.7399
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept) -3.328e-01  5.931e-01  -0.561 0.576036
## oilTRUE      2.325e+00  9.041e-01   2.572 0.011703 *
## interTRUE    1.478e+00  3.655e-01   4.045 0.000108 ***
## gdp60       -2.406e-04  6.131e-05  -3.924 0.000167 ***
## popgrowth    7.210e-01  1.745e-01   4.131 7.88e-05 ***
## invest       1.303e-01  2.100e-02   6.205 1.50e-08 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.322 on 93 degrees of freedom
## Multiple R-squared:  0.4979,	Adjusted R-squared:  0.471
## F-statistic: 18.45 on 5 and 93 DF,  p-value: 1.095e-12
```
]
]

---

Our final model.

> How to interpret this?

---

# Presenting the results

---

<table style="text-align:center"><tr><td colspan="6" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left"></td><td colspan="5">Dependent variable:</td></tr>
<tr><td></td><td colspan="5" style="border-bottom: 1px solid black"></td></tr>
<tr><td style="text-align:left"></td><td colspan="5">gdpgrowth</td></tr>
<tr><td style="text-align:left"></td><td>(1)</td><td>(2)</td><td>(3)</td><td>(4)</td><td>(5)</td></tr>
<tr><td colspan="6" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left">oil</td><td></td><td></td><td></td><td>1.035</td><td>1.200*</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td>(0.699)</td><td>(0.667)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">inter</td><td></td><td></td><td></td><td>1.029***</td><td>1.082***</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td>(0.302)</td><td>(0.269)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">oecd</td><td></td><td></td><td></td><td>-0.237</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td>(0.477)</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">gdp60</td><td></td><td></td><td></td><td>-0.001***</td><td>-0.001***</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td>(0.0001)</td><td>(0.0001)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">gdp85</td><td></td><td></td><td></td><td>0.0005***</td><td>0.0005***</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td>(0.0001)</td><td>(0.00005)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">literacy60</td><td></td><td></td><td>0.019***</td><td>-0.004</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td>(0.005)</td><td>(0.007)</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">popgrowth</td><td>1.025***</td><td></td><td>1.004***</td><td>1.056***</td><td>1.131***</td></tr>
<tr><td style="text-align:left"></td><td>(0.173)</td><td></td><td>(0.205)</td><td>(0.168)</td><td>(0.134)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">school</td><td></td><td>0.052</td><td></td><td>0.078</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td>(0.066)</td><td></td><td>(0.055)</td><td></td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">invest</td><td>0.126***</td><td>0.070**</td><td></td><td>0.042**</td><td>0.047***</td></tr>
<tr><td style="text-align:left"></td><td>(0.020)</td><td>(0.029)</td><td></td><td>(0.019)</td><td>(0.018)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td style="text-align:left">Constant</td><td>-0.507</td><td>2.488***</td><td>0.788</td><td>-0.134</td><td>-0.270</td></tr>
<tr><td style="text-align:left"></td><td>(0.624)</td><td>(0.423)</td><td>(0.645)</td><td>(0.472)</td><td>(0.430)</td></tr>
<tr><td style="text-align:left"></td><td></td><td></td><td></td><td></td><td></td></tr>
<tr><td colspan="6" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left">Observations</td><td>99</td><td>99</td><td>99</td><td>99</td><td>99</td></tr>
<tr><td style="text-align:left">R2</td><td>0.365</td><td>0.138</td><td>0.216</td><td>0.745</td><td>0.738</td></tr>
<tr><td style="text-align:left">Adjusted R2</td><td>0.352</td><td>0.120</td><td>0.200</td><td>0.719</td><td>0.721</td></tr>
<tr><td style="text-align:left">Residual Std. Error</td><td>1.464 (df = 96)</td><td>1.705 (df = 96)</td><td>1.626 (df = 96)</td><td>0.964 (df = 89)</td><td>0.960 (df = 92)</td></tr>
<tr><td style="text-align:left">F Statistic</td><td>27.586*** (df = 2; 96)</td><td>7.690*** (df = 2; 96)</td><td>13.231*** (df = 2; 96)</td><td>28.855*** (df = 9; 89)</td><td>43.278*** (df = 6; 92)</td></tr>
<tr><td colspan="6" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left">Note:</td><td colspan="5" style="text-align:right">*p<0.1; **p<0.05; ***p<0.01</td></tr>
</table>
]

---

# Practical application

---

Use the data set `TeachingRatings`.

Investigate the effects on the course overall teaching evaluation score (`eval`).

> What are the effects?

> Which variables should we use as predictors?

> Does our final model meet the assumptions of a least squares model?

---
